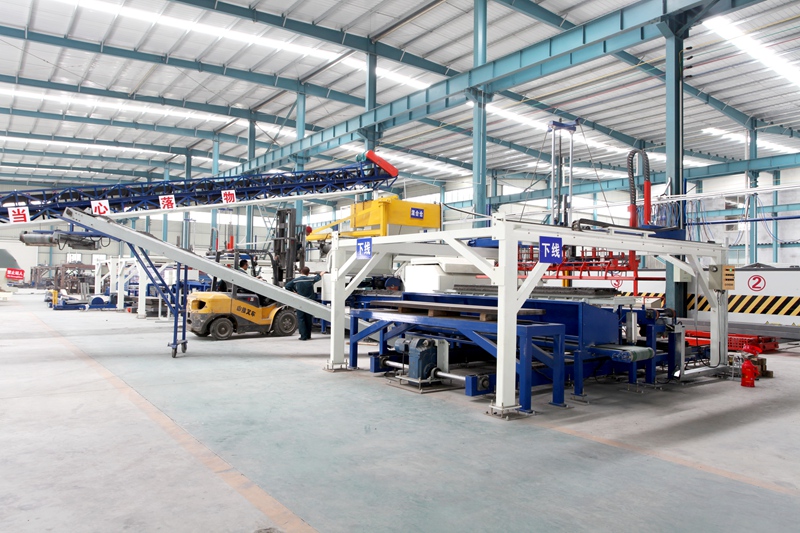

Extruded Wall Panel Production Line Introduction

Average power：≤45 kw

Board delivery speed：2.8 m/min

Number of single work shift workers：3-5

Hourly output：80 m2

Annual light wall panel output：300000 m2

Wall panel size

length：2.4-3.3 m

width：600 mm thickness：90, 100, 120 mm

Wall panel quality: conform to JG3063-1999 standard

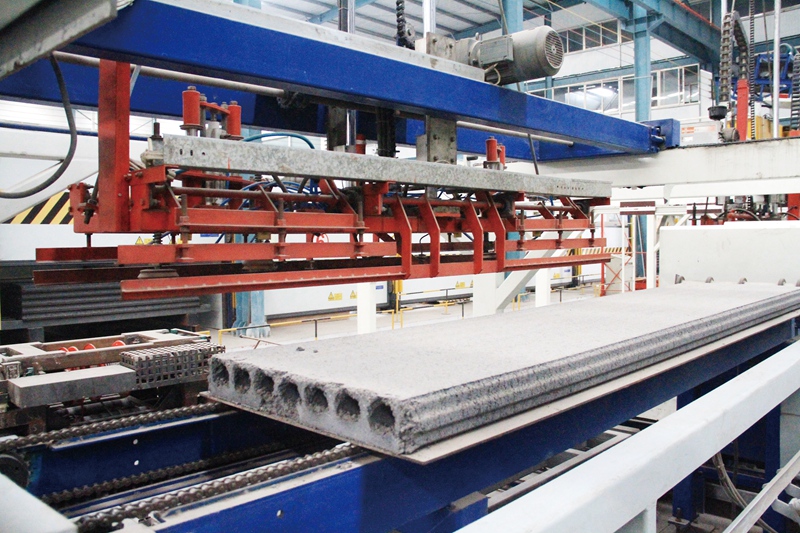

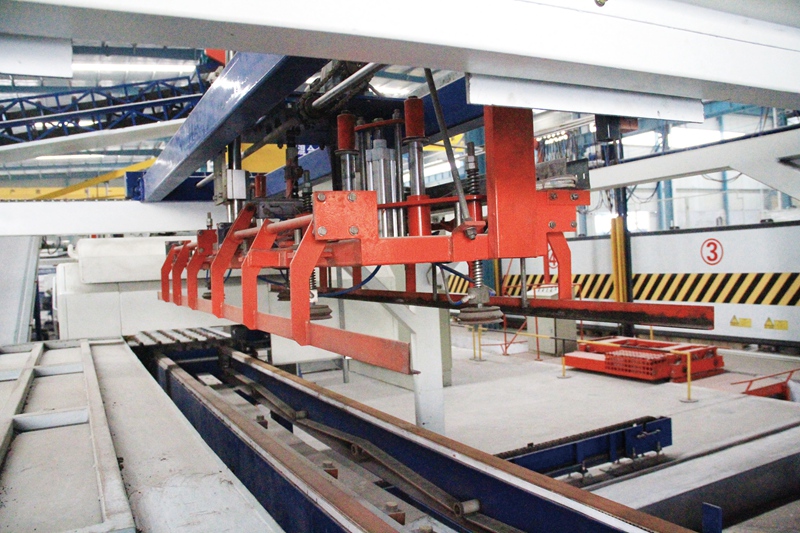

The extruded wall panel production line is featured by compact structure, high degree of automation and fixed primary equipment. The materials will be extruded and vibrated at the same time in wall panel molding and the wall panel will be molded through continuous automatic vibration and extrusion to guarantee the good compactness and overall dimensions of wall panel. Initial setting maintenance is made after molding. Semi-finished wall panel moves with convenience, flexibility and high efficiency. Extrusion screw frequency control is adopted in molding process. The molding dense degree of the ash plate is adjusted and controlled by a central controller to realize the continuous automatic assembly line of the ash plate. As the stiff mixture with low water cement ratio is adopted for the extrusion molding, hollow wall panel with high strength and high compactness can be produced. Automatic continuous production, high efficiency and high quality consistency can guarantee high quality of the wall panel. The produced wall panel is widely used in frame structure or steel structure buildings.

The lightweight wall panel produced by this equipment through utilizing all kinds of solid waste, industrial slag, coal ash, plant straw, shale and other materials is a kind of new building materials of environmental protection, energy saving, waste recycling in line with the construction module, which can realize production standardization, serialization and generalization with construction dry operation and improve the construction efficiency more than 3 times than the various blocks and bricks wall at least.

Advantages

● Quick installation

● Quick return on investment

● Less demand of labor

● Flexible production cycle

● Economic production cost

● Low resource consumption and resource requirements

● Complete automation in the production workshop

● Environment friendly technology - no shake, no waste
